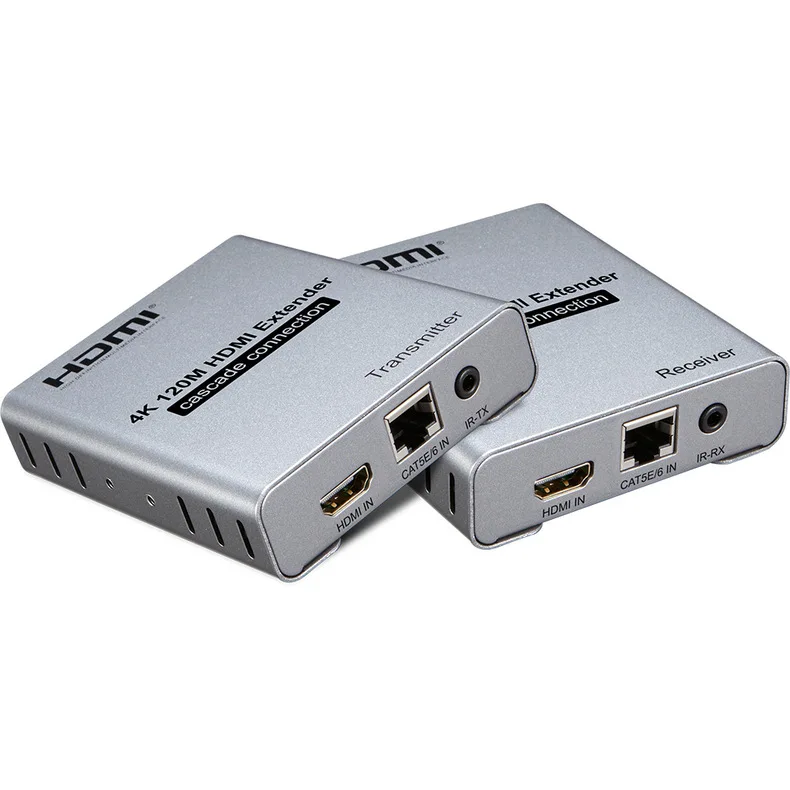

4K 120M HDMI Extender Kaskadeforbindelse Over CAT5e CAT6 RJ45 Ethernet LAN Netværkskabel Forlænger Splitter Sendermodtager

Introduction: The 4K 120M HDMI extender uses one single cat-5E or cat-6(recommended) cable instead of HDMI cable, you can extend the 4K@30Hz signal to 120 meters . The purpose of the extender is to achieve long-distance signal transmission with low-cost wires. Features: 1:120M long distance transmission: 2:Multi-receiver cascade transmission: 3:Low power consumption, low temperature and high safety. Length of CAT-5E/CAT-6 cable between Rx and TX ............ up to 120 meters HDMI input ......................... 4K/1080p/720p/576p/576i/480p/480i Support audio format ........................ DTS/Dolby/LPCM HDMI output ............... 4K30Hz/1080p/720p/576p/576i/480p/480i Max bandwidth .............................. 340MHz Max baud rate ....................................... 3.4Gbpsx3 Input video signal ................................. 0.5~1.5Volts p-p Output DDC signal ............................. 5Volts p-p (TTL) Input HDMI cable distance .......... ≤15m AWG26 HDMI standard cable Output HDMI cable distance ...... ≤15m AWG26 HDMI standard cable TX Max working current ...................................... 350mA RX Max working current ...................................... 200mA Power adapter format .................. Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A Operating Temperature range .............................. (-15 to +55℃) Operating Humidity range ......................... 5% to 90%RH (No Condensation) Dimension (L x W x H) ........................................ 94x84x24(mm) TX Weight ............................................................. 223g RX Weight ........................................................... 223g Package Content: 1PCS Transmitter 1PCS Receiver 1Pair IR Cable 2PCS Power Adapter 1PCS User Guide
